車載資訊顯示系統與人機介面

VPC-101RB2S Series

• NVIDIA® Jetson Orin™ NX 16GB
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
• NVIDIA® Jetson Orin™ Nano 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

Platform Security Controller (PSC), Security Engine (SE)

10.1″

1280 x 800

1000 nits

800:1

178/178

50000

PCT w/ AG and AF treatment

Optical Bonding

1 x Line-out, 1 x Mic-in (optional)

• 1 x 2.5 GbE (Optional 4 x PoE+ for PoE model)
• 1 x GbE via M12 X-code

4 x GMSL-2 via FAKRA (for GMSL Model)

1 x CAN FD via M8

2 x USB 2.0 via M8

3 x DI (DC 60 V) + 4 x DO (12VDC/100mA)

• 1 x RS-232/422/485 via M8
• 1 x RS-232 via M8

1 x USB Type-C (device only)

• 1 x M.2 3042/3052 Key B for WWAN w/ Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT

1 x M.2 2242 Key M for NVMe SSD (Pre-installed system BSP)

DC 9-60V (nominial power input DC 12V/24V/48V)

OCP, OVP, surge protection, reversed polarity protection

Ignition detection

Removable top tray for RTC coin cell battery

NVIDIA® JetPack 6.2 or above
(Jetson Linux and NVIDIA® development tools included)

-25°C ~ 60°C (-13°F ~ 140°F) with 0.6 m/s airflow

-40°C ~ 85°C (-40°F ~ 185°F)

10% RH ~ 95% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

6 x SMA connector mounting hole

VESA 100 x 100

4.15 kg (9.15 lb)

260 x 179 x 75 (10.24 x 7.05 x 2.96 in.)

IP66

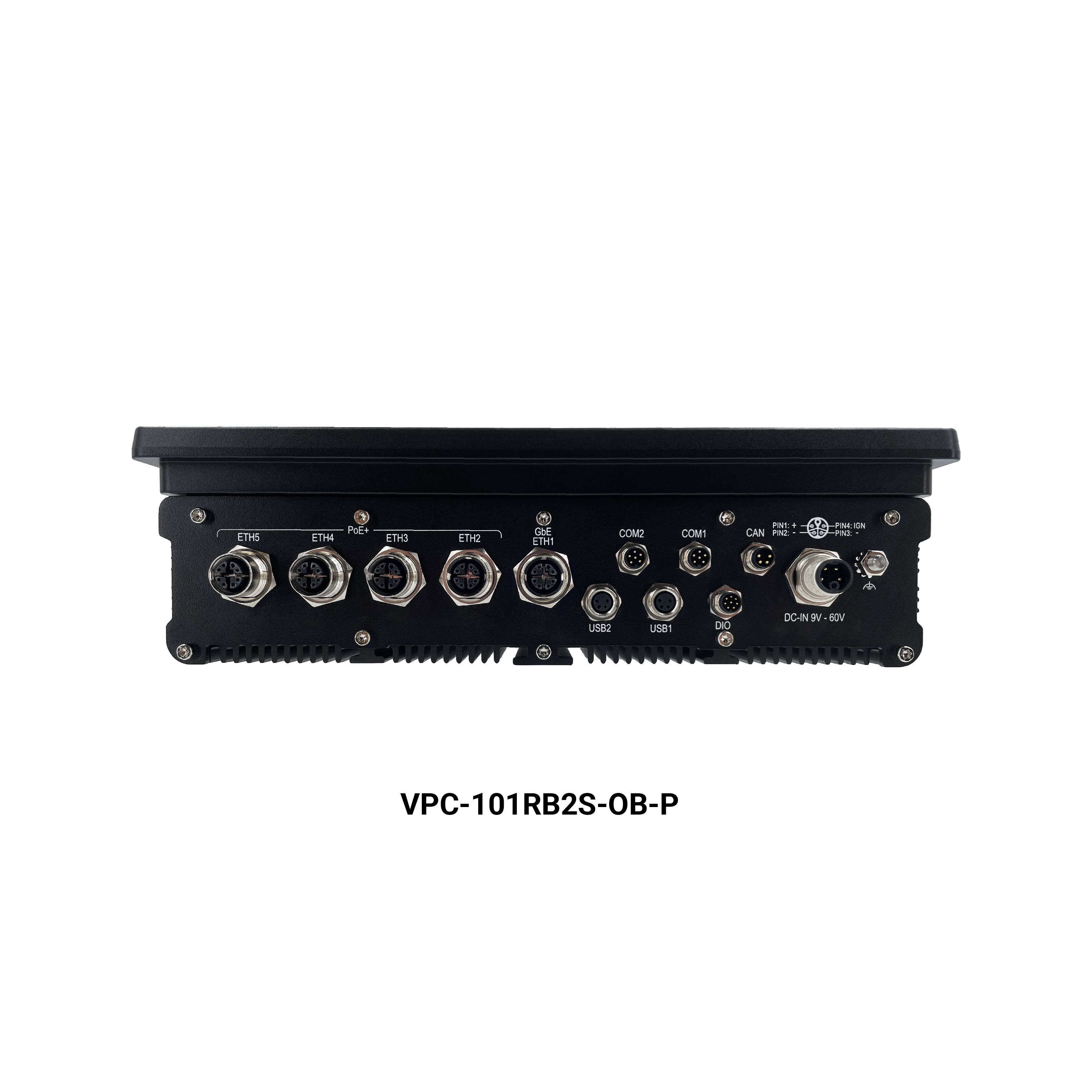

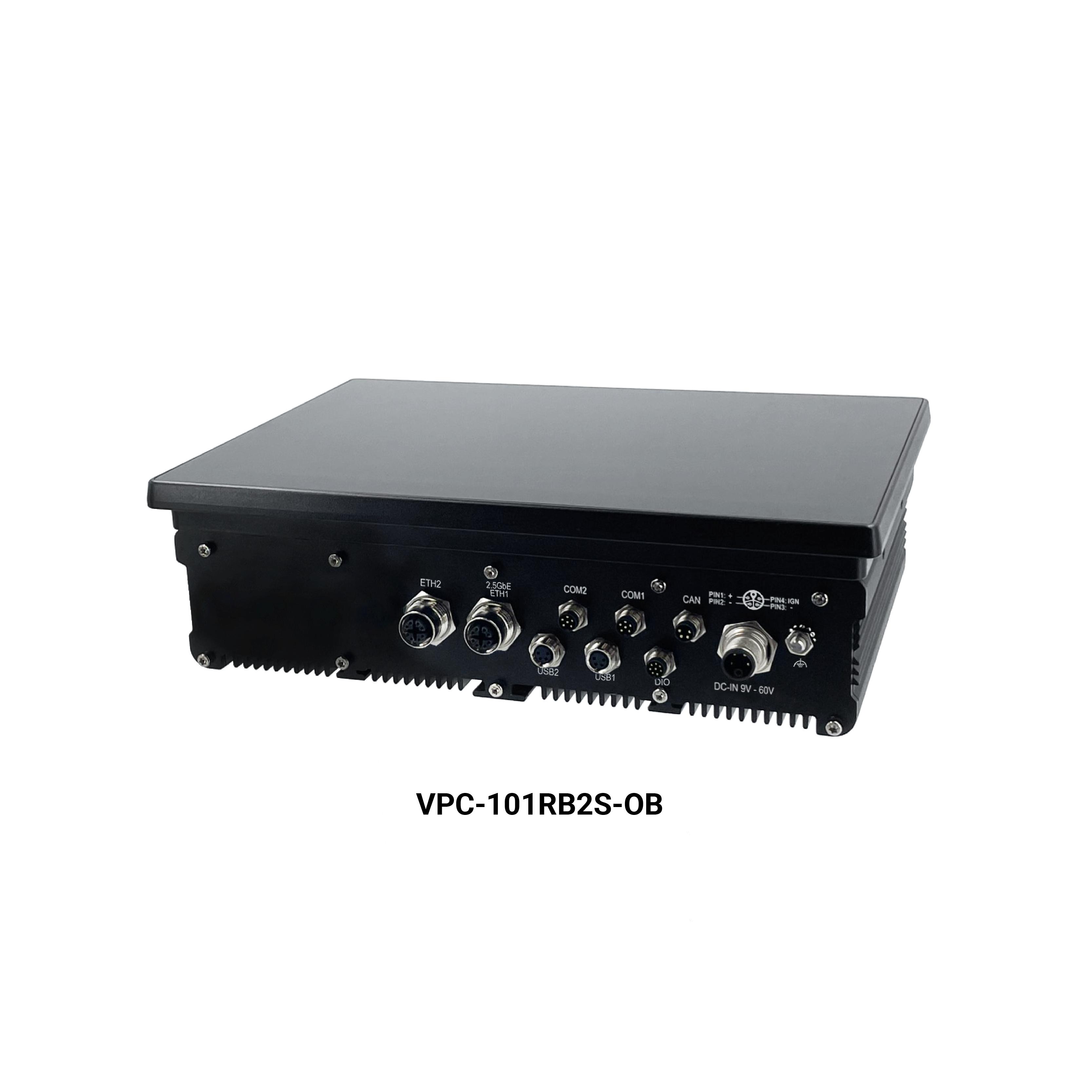

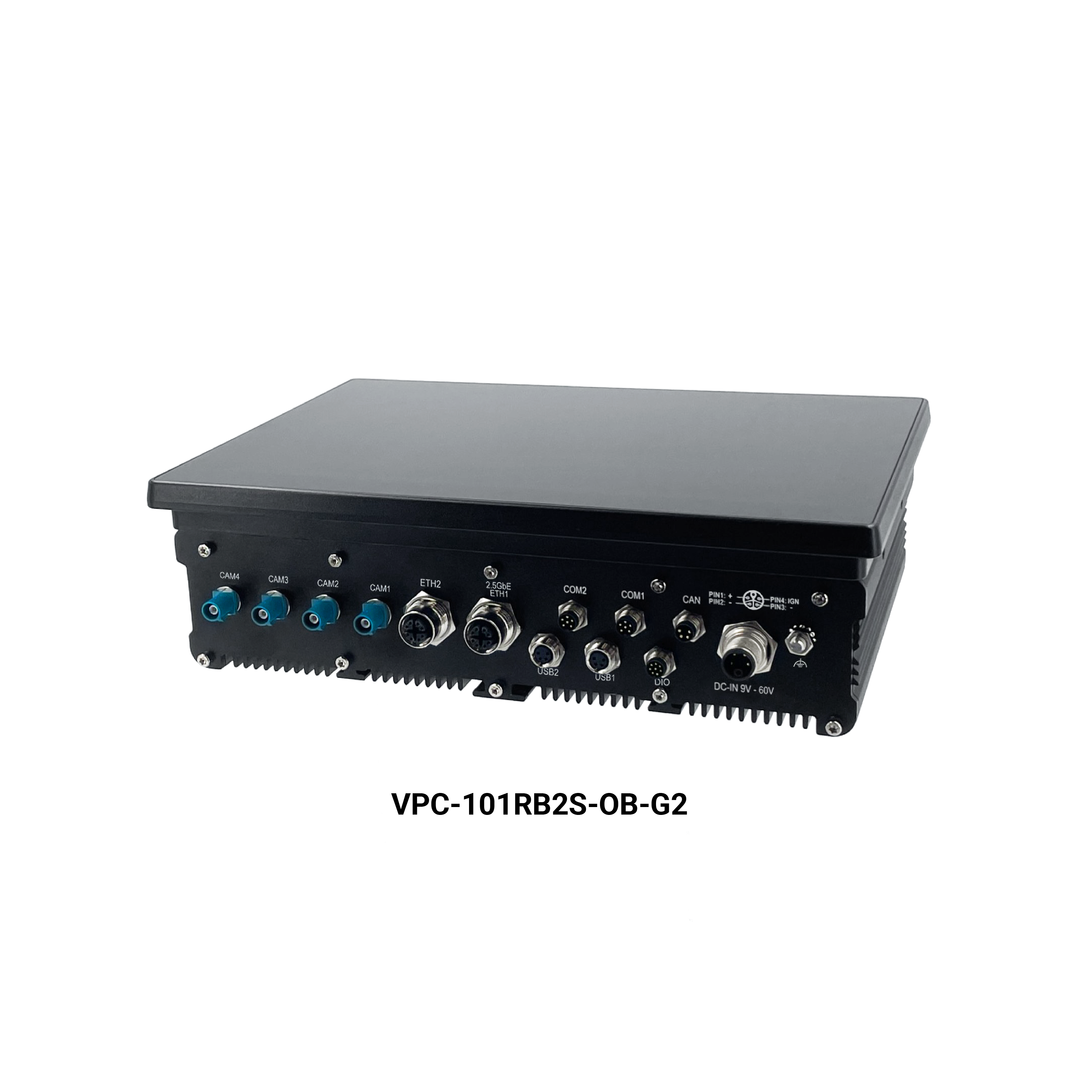

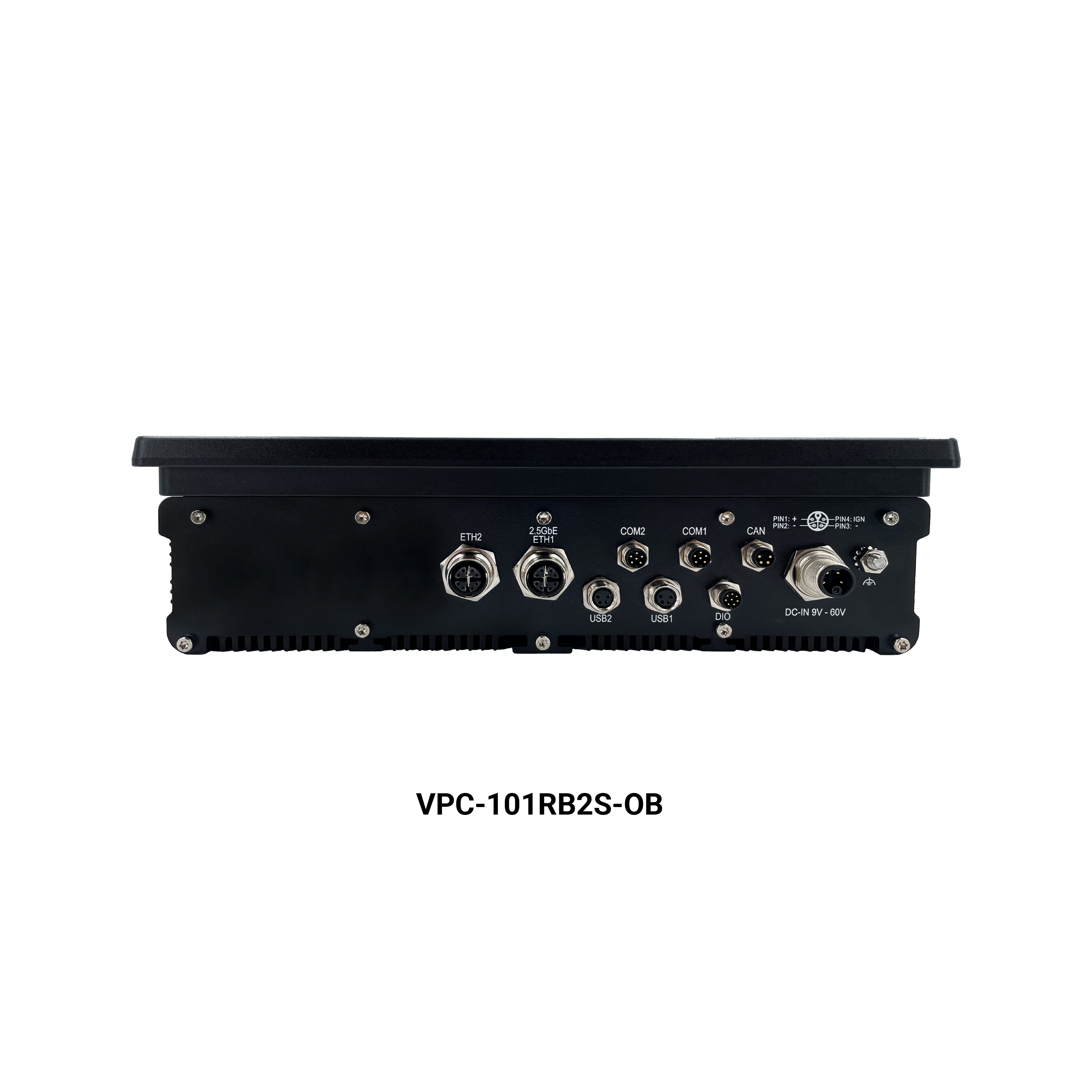

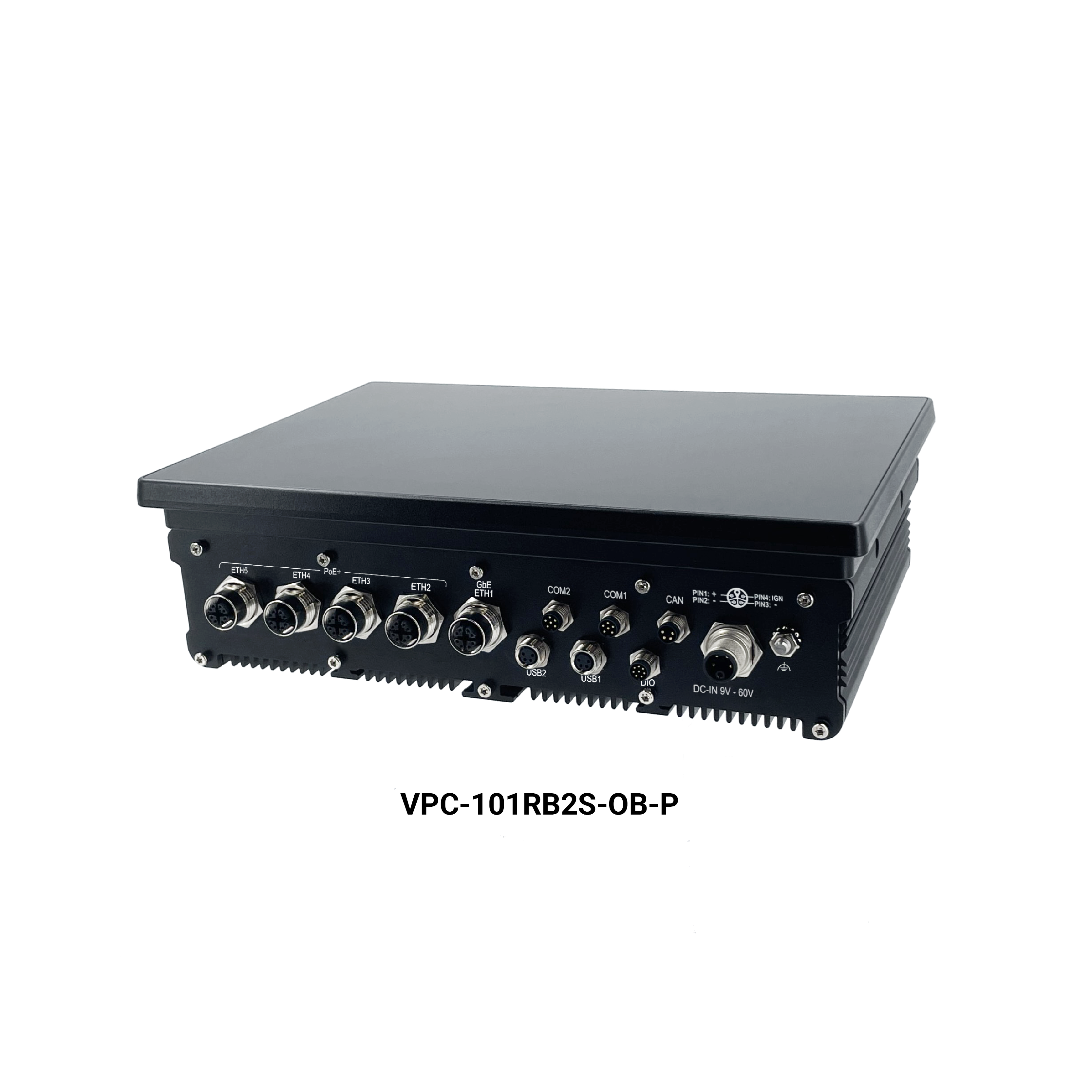

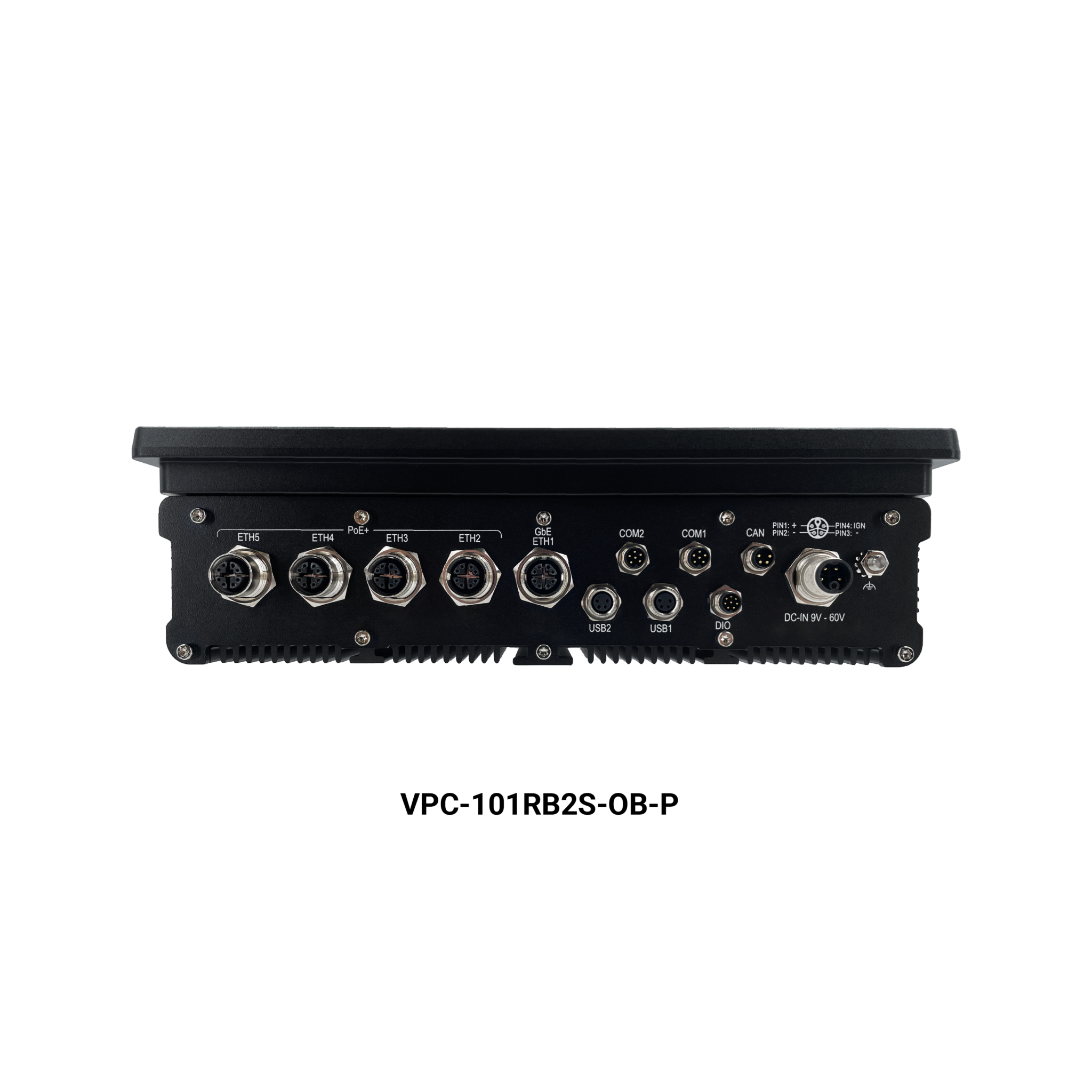

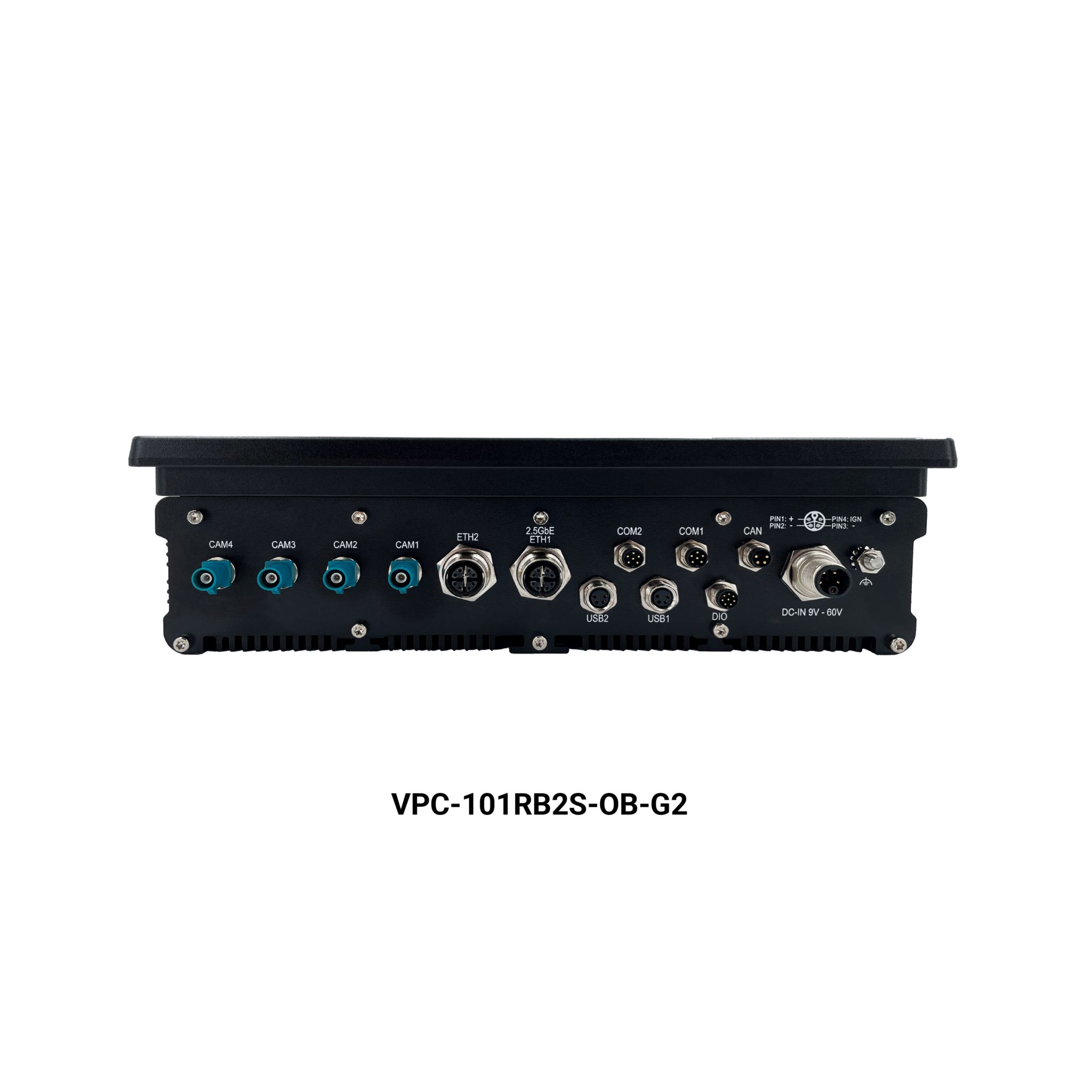

VPC-101RB2S-OB-(P/G2)-(ONX16/ONX8/ON8)
(P=with PoE+, G2=with GMSL, None=w/o function board)
Jetson Platfom:
ONX16= Jetson Orin 16GB
ONX8= Jetson Orin 8GB
ON8= Jetson Orin Nano 8GB

Made in Taiwan

M.2 2242 Key M NVMe SSD 240G/256G/480G/512G/960G, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C

VPC Series Camera Support
